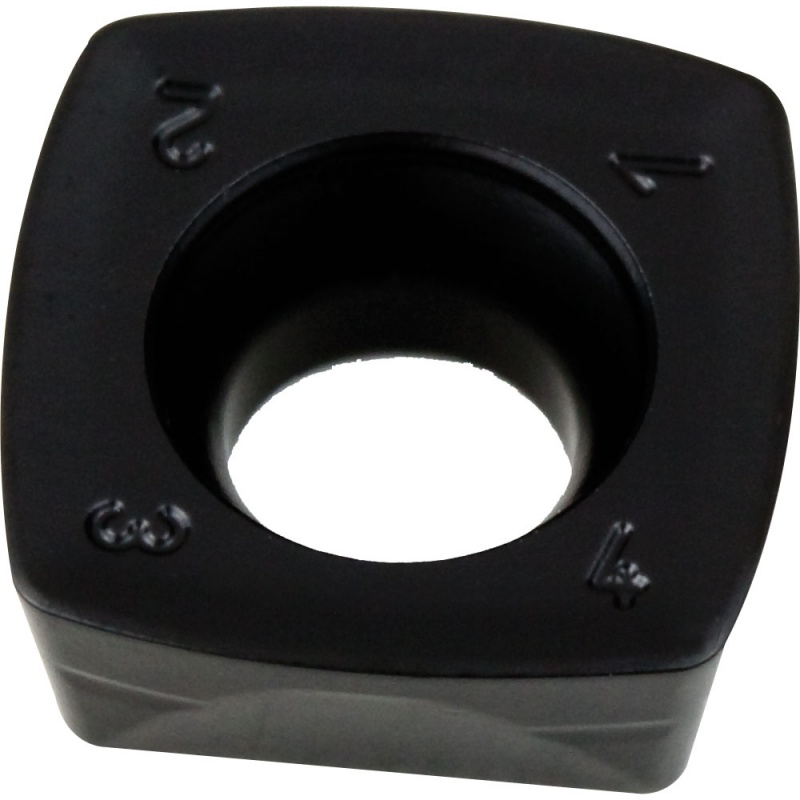

XDLT 10T308SR-H NK230 Carbide Inserts for High Feed Milling of Steel

XDLT 10T308SR-H NK230 Carbide Inserts for High Feed Milling of Steel
Zoom  Zoom
Our Price:  £5.40
List Price:  £8.10
Saving Of:  £2.70 (33%)
(Exc. 20% VAT)(£6.48 Inc. VAT)

Model:  XDLT10T308SR-HNK230
Brand:  APT Carbide

Shipped Weight:  8 g

Availability:

Only 40 left in stock - order soon

Only 40 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


XDLT 10T308SR-H NK230 Carbide Inserts for High Feed Milling of Steel CVD Coated Grade NK230 P30 with High Quality CVD Coating.

Main application all types of Steel.

Geometry H for Steel.

These inserts provide very high table feed at low cutting depth.

Dimensions for XDLT 10T308SR-H NK230 (mm)
Inscribed Circle or WidthThicknessHole DiaCorner RadiusSide Clearance
103.974.40.8
Speeds and Feeds, General Cutting parameters.
MaterialHardness HBCutting Speed VC: m/minDepth of Cut ap(mm)Feed fz(mm)Application Choice
Non alloyed steel 0-0.45% C150-25060-2200.1-1.00.1-2.4Good
Low alloyed steel250-30060-2200.1-1.00.1-2.4Good
High alloyed steel20060-1800.1-1.00.1-2.4Good
Corrosion resistant steel20060-1900.1-1.00.1-2.4Good



Ramping and Helical Interpolation Parameters (mm)
Cutter DiameterRampingRampingHelical cuttingHelical cuttingHelical cuttingHelical cutting
Dcα°ap maxα°ap maxMax hole diameter flat bottomMin hole diameter
253.61.03.11.04835
401.21.01.01.07865
500.91.00.81.09885
630.81.00.71.0124111
