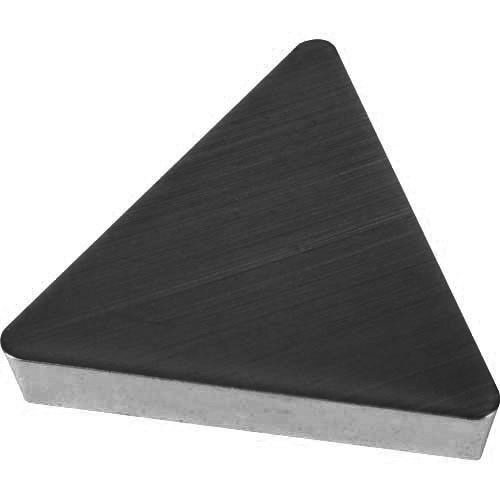

TPUN 160304 APT30 Carbide Inserts for Turning CVD Coated for General Use APT

TPUN 160304 APT30 Carbide Inserts for Turning CVD Coated for General Use APT
Zoom  Zoom
Our Price:  £4.39
List Price:  £6.59
Saving Of:  £2.20 (33%)
(Exc. 20% VAT)(£5.27 Inc. VAT)

Model:  TPUN160304APT30
Brand:  APT Carbide

Shipped Weight:  7 g

Availability:

Only 10 left in stock - order soon

Only 10 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts Grade APT30 (P35–M30 + MT–CVD TiN–TiCN–AlO2–TiN Coating) Main application – Steel

Dimensions for TPUN 160304 APT30 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Corner Radius Side Clearance
16.0 9.53 3.18 0.4 11°
General Cutting parameters
Material Material Group Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Steel P20-P35 90-180 1.0-13.0 0.10-0.25 Good
Stainless M15-M25 60-100 1.0-4.0 0.10-0.15 OK
