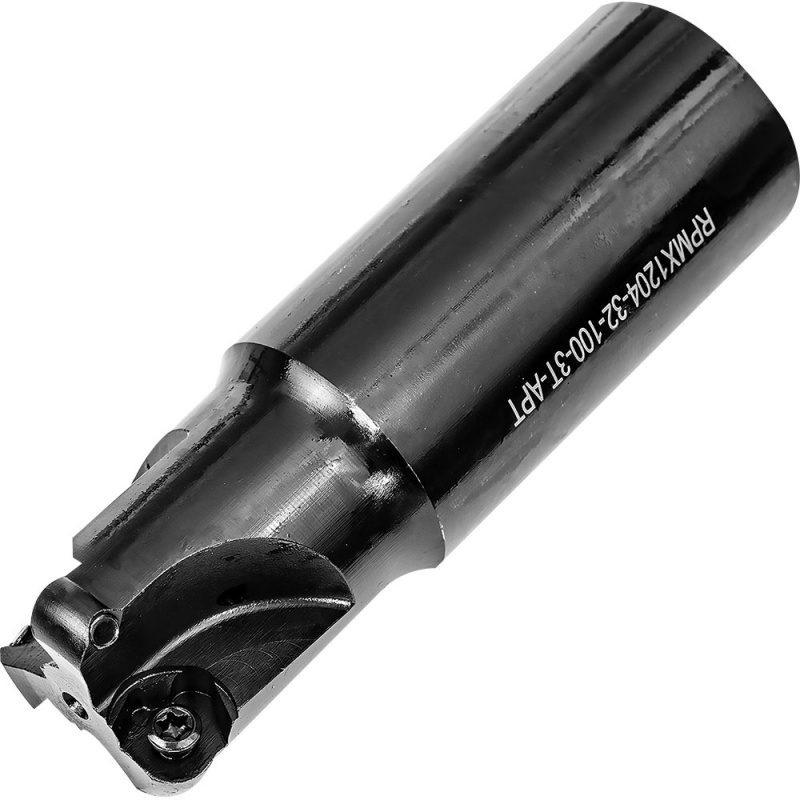

RPMX1204-32-100-3T End Mill for RDHX, RPHX, RPMX 1204 Inserts 25mm dia 100mm long 3 Teeth

RPMX1204-32-100-3T End Mill for RDHX, RPHX, RPMX 1204 Inserts 25mm dia 100mm long 3 Teeth
Zoom  Zoom
Our Price:  £30.00(Exc. 20% VAT)(£36.00 Inc. VAT)

Model:  RPMX1204-32-100-3T
Brand:  APT Tools

Shipped Weight:  655g

Availability:

Only 10 left in stock - order soon

Only 10 left in stock - order soon

APT Tools

Tools for Indexable Inserts


RPMX1204-32-100-3T End Mill for RDHX, RPHX, RPMX 1204 Inserts 25mm dia 100mm long 3 Teeth.

Reach = 40.

Through coolant.

Uses round inserts with octagon shaped base for accurate indexing providing 4 or 8 edges depending on depth of cut.

Cutter bodies will accept RDHX 1204MO, RPHX 1204MO and RPMX 1204MO inserts with octagon base.

Dimensions for RPMT1204-32-100-3T (mm)
Diameter Length Shank Dia Reach Teeth Thru' Coolant
32 100 32 40 3 Yes



Ramping and Helical Interpolation Parameters (mm)
Cutter Diameter Angle Ramping Angle Helical cutting Helical cutting
Dc α° ap max α° Max hole diameter Min hole diameter
32 4.0 3.0 1.7 52 46
