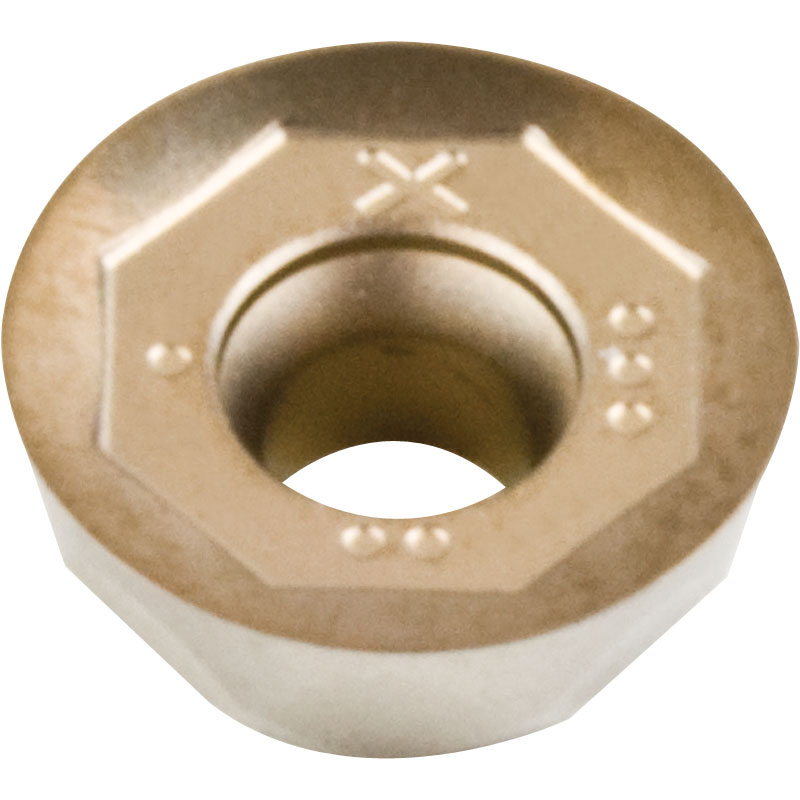

RPHX 1204MO-X NK535 Carbide Inserts for Milling Hi-Temp Alloys Inconel Waspaloy Stellite Nimonic

RPHX 1204MO-X NK535 Carbide Inserts for Milling Hi-Temp Alloys Inconel Waspaloy Stellite Nimonic
Zoom  Zoom
Our Price:  £8.24
List Price:  £12.36
Saving Of:  £4.12 (33%)
(Exc. 20% VAT)(£9.89 Inc. VAT)

Model:  RPHX1204MO-XNK535
Brand:  APT Carbide

Shipped Weight:  10g

Availability:

Only 60 left in stock - order soon

Only 60 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


RPHX 1204MO-X NK535 Carbide Inserts for Milling CVD Coated Grade NK535 (S25–M35 + New CVD Coating) Main application Hi–Temp Alloys, Inconel, Waspaloy, Nimonic ect extended application – Stainless

Geometry S for Alloy Steel, Stainless & Hi–Temp Alloy

Dimensions for RPHX 1204MO-X NK535 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
12.0 12.0 4.76 4.4 - 11°
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Stainless - Ferritic 200 220-350 0.5-4.0 0.1-0.30
Stainless - Austenitic 180 150-250 0.5-4.0 0.1-0.30
Stainless - Duplex 230-260 60-140 0.5-4.0 0.1-0.25
Stainless - Martensitic 330 60-180 0.5-4.0 0.1-0.25
Iron Based Hi-temp Alloys 200-280 25-40 0.5-4.0 0.1-0.30
Nickel or Cobalt Based 30-58 HRC - 25-30 0.5-3.5 0.1-0.25
Nickel or Cobalt Based 250 HB 250 25-30 0.5-3.5 0.1-0.25
Pure Titanium - 30-70 0.5-4.0 0.1-0.30
Titanium  Alpha + Beta Alloys - 30-70 0.5-4.0 0.1-0.30
