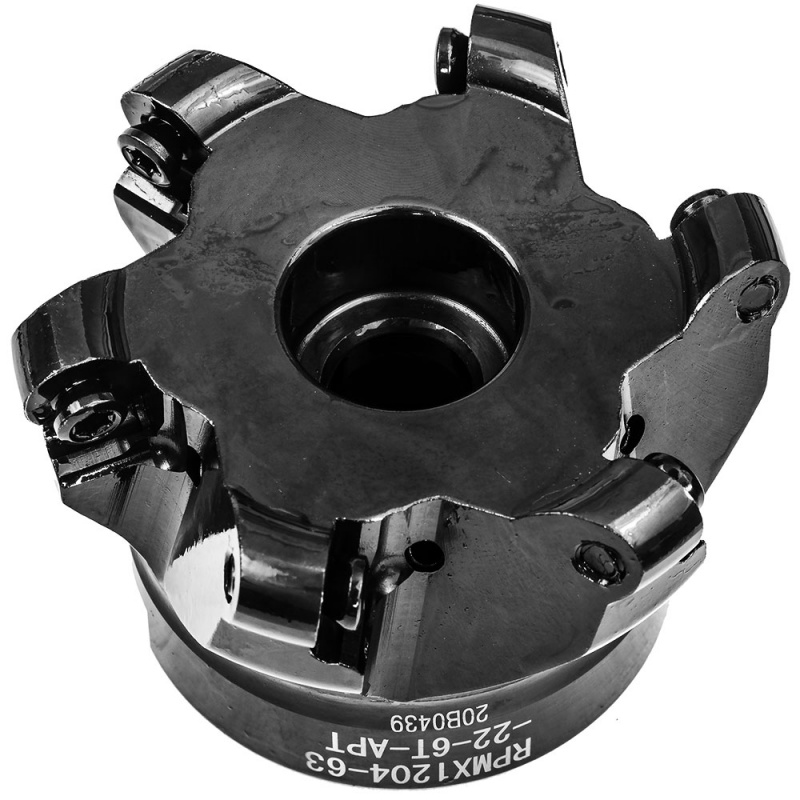

RPMX1204-63-22-6T Milling Cutter for RDHX, RPHX, RPMX 1204MO Inserts 63mm diameter 6 Teeth

Zoom

Our Price: £51.00(Exc. 20% VAT)(£61.20 Inc. VAT)

Model: RPMX1204-63-22-6T
Brand: APT Tools

Shipped Weight: 680 g

Availability:

Item is on a long delivery or is discontinued

APT Tools

Tools for Indexable Inserts

RPMX1204-63-22-6T Milling Cutter for RDHX, RPHX, RPMX 1204MO Inserts 63mm diameter 6 Teeth.

Bore = 22mm.

Through coolant.

Uses round inserts with octagon shaped base for accurate indexing providing 4 or 8 edges depending on depth of cut.

Cutter bodies will accept RDHX 1204MO, RPHX 1204MO and RPMX 1204MO inserts with octagon base.

Dimensions for RPMX1204-63-22-6T (mm)

Diameter	Height	Bore	Teeth	Thru' Coolant
63	40	22	6	Yes

Ramping and Helical Interpolation Parameters (mm)

Cutter Diameter	Angle	Ramping	Angle	Helical cutting	Helical cutting
Dc	α°	ap max	α°	Max hole diameter	Min hole diameter
63	1.9	3.0	0.9	114	107

Related Products - Spare Parts

RPHX 1204MO-X NK535 Carbide Inserts for Milling Hi-Temp Alloys Inconel Waspaloy Stellite Nimonic~~£14.14~~ £9.42

RDHX 1204MO-ALU AK10 Carbide Inserts for Milling Ground and Polished for Aluminium~~£12.12~~ £8.08

RPMX 1204MO-H NK135 Carbide Inserts for Milling PVD Coated for General Use~~£10.19~~ £6.79

RPMX 1204MO-H NK315 Carbide Inserts for Milling CVD Coated for Cast Iron~~£10.19~~ £6.79

RPMX 1204MO-S NK235 Carbide Inserts for Milling PVD Coated for Stainless~~£10.19~~ £6.79

5515 Torx 15 Flag Key~~£6.62~~ £5.96

1240 Torx Screw M4x0.7 - 11mm long - Torx 15~~£2.91~~ £2.62

(3)

Customer Reviews

RPMX1204-63-22-6T Milling Cutter for RDHX, RPHX, RPMX 1204MO Inserts 63mm diameter 6 Teeth

Average Rating (1 Review):

Write a Review and share your opinions!

Rating:

Tested on C45 steel

15 January 2021 | Terje

Insert used: RPMX1204MO-H NK135
Face mill mounted on ISO40 holder also from APT, type DIN2080 40-FMB22-45.

DofCut: 1.5mm
Width of cut: ~50mm
Spindle speed: 290rpm
Feed:225mm/min
No cutting fluid, light breeze of compressed air only...to keep the scaling dust away.

Squared up 6 pcs. of c45 steel blocks 120x50x80mm 36 sides all together.... which will soon be new tool holders for my lathe.
Result: Almost mirror finish!!
