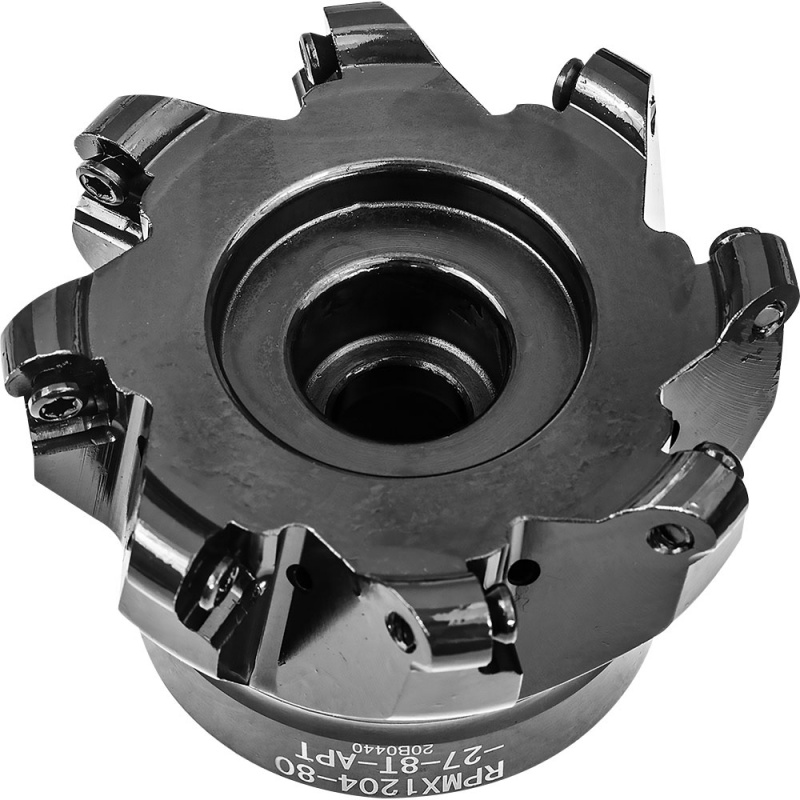

RPMX1204-80-27-8T Milling Cutter for RDHX, RPHX, RPMX 1204MO Inserts 80mm diameter 8 Teeth

RPMX1204-80-27-8T Milling Cutter for RDHX, RPHX, RPMX 1204MO Inserts 80mm diameter 8 Teeth
Zoom  Zoom
Our Price:  £66.00(Exc. 20% VAT)(£79.20 Inc. VAT)

Model:  RPMX1204-80-27-8T
Brand:  APT Tools

Shipped Weight:  1.10 kg

Availability:

Only 1 left in stock - order soon

Only 1 left in stock - order soon

APT Tools

Tools for Indexable Inserts


RPMX1204-80-27-8T Milling Cutter for RDHX, RPHX, RPMX 1204MO Inserts 80mm diameter 8 Teeth.

Bore = 27mm.

Through coolant.

Uses round inserts with octagon shaped base for accurate indexing providing 4 or 8 edges depending on depth of cut.

Cutter bodies will accept RDHX 1204MO, RPHX 1204MO and RPMX 1204MO inserts with octagon base.

Dimensions for RPMX1204-80-27-8T (mm)
Diameter Height Bore Teeth Thru' Coolant
80 50 27 8 Yes



Ramping and Helical Interpolation Parameters (mm)
Cutter Diameter Angle Ramping Angle Helical cutting Helical cutting
Dc α° ap max α° Max hole diameter Min hole diameter
80 1.3 3.0 0.7 148 142
