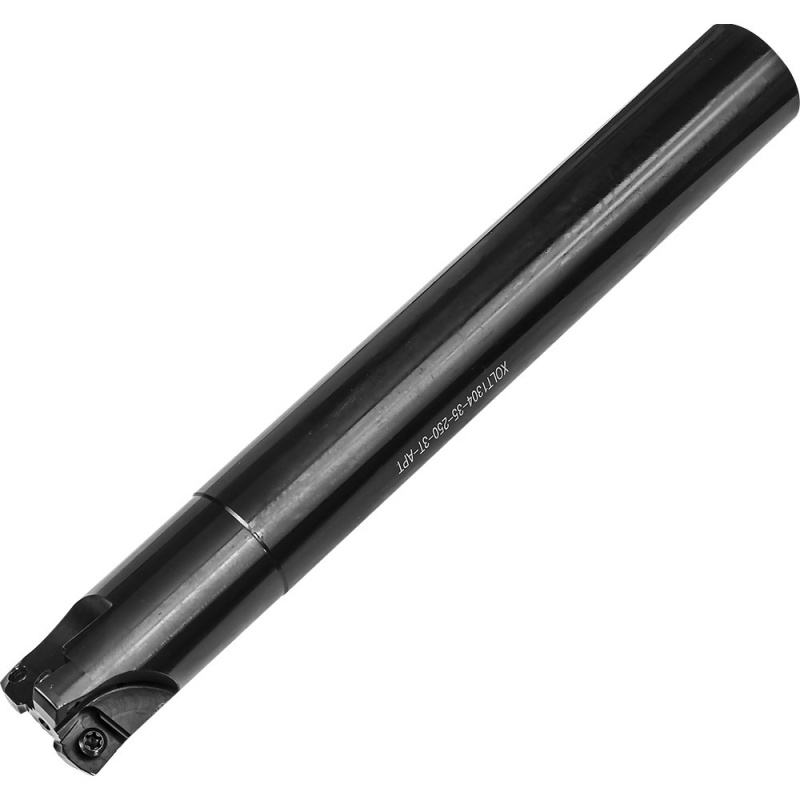

XOLT1304-35-250-3T High Feed End Mill for XOLT 130410 Inserts 35mm diameter 3 Teeth

XOLT1304-35-250-3T High Feed End Mill for XOLT 130410 Inserts 35mm diameter 3 Teeth
Zoom  Zoom
Our Price:  £47.00(Exc. 20% VAT)(£56.40 Inc. VAT)

Model:  XOLT1304-35-250-3T
Brand:  APT Tools

Shipped Weight:  1.60 kg

Availability:

Only 8 left in stock - order soon

Only 8 left in stock - order soon

APT Tools

Tools for Indexable Inserts


XOLT1304-35-250-3T High Feed End Mill for XOLT 130410 Inserts 35mm diameter 3 Teeth.

32mm Diameter Shank, 250mm Long, 32mm Reach.

These inserts provide very high table feed at low cutting depth.

Suitable for high feed milling, slotting, ramping and helical interpolation.

Dimensions for XOLT1304-35-250-3T (mm)
Diameter Shank Reach Length Teeth Inserts Through Hole Coolant
35

32

63 250 3 XOLT 130410 Yes

Ramping and Helical Interpolation Parameters (mm)
Cutter Diameter Ramping Ramping Helical cutting Helical cutting Helical cutting Helical cutting
Dc α° ap max α° ap max Max hole diameter flat bottom Min hole diameter
35 4.4 2.0 3.7 2.0 68 50
