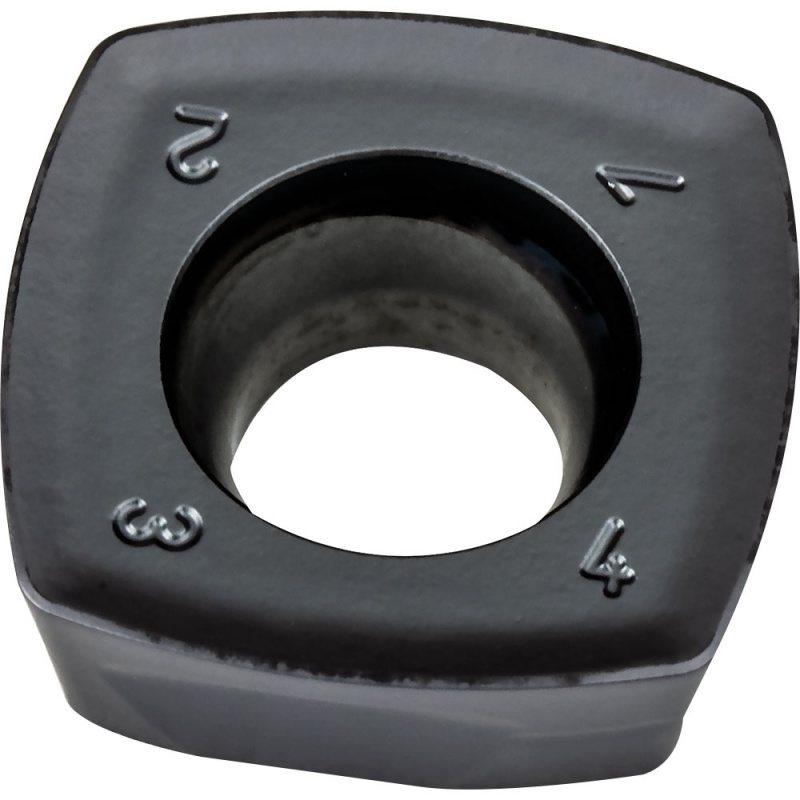

XOLT 130410SR-H NK235 Carbide Inserts for High Feed Milling of Steel

XOLT 130410SR-H NK235 Carbide Inserts for High Feed Milling of Steel
Zoom  Zoom
Our Price:  £7.55
List Price:  £11.33
Saving Of:  £3.78 (33%)
(Exc. 20% VAT)(£9.06 Inc. VAT)

Model:  XOLT130410SR-HNK235
Brand:  APT Carbide

Shipped Weight:  15 g

Availability:

Only 90 left in stock - order soon

Only 90 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


XOLT 130410SR-H NK230 Carbide Inserts for High Feed Milling of Steel PVD Coated Grade NK235  P35, M35 with High Quality PVD Coating.

Main application all types of Steel.

Geometry H for Steel.

These inserts provide very high table feed at low cutting depth.

Dimensions for XOLT 130410R-H NK235 (mm)
Inscribed Circle or WidthThicknessHole DiaCorner RadiusSide Clearance
134.765.51.0
Speeds and Feeds, General Cutting parameters.
MaterialHardness HBCutting Speed VC: m/minDepth of Cut ap(mm)Feed fz(mm)Application Choice
Non alloyed steel 0-0.45% C150-25060-2200.1-2.00.15-3.0Good
Low alloyed steel250-30060-2200.1-2.00.15-3.0Good
High alloyed steel20060-1800.1-2.00.15-3.0Good
Corrosion resistant steel20060-1900.1-2.00.15-3.0Good
Stainless - Ferritic20060-2000.1-2.00.15-2.8OK
Stainless - Austenitic18060-2000.1-2.00.15-2.8OK
Stainless - Duplex230-26060-1300.1-2.00.15-2.8OK
Stainless - Martensitic33060-2000.1-2.00.15-2.8OK



Ramping and Helical Interpolation Parameters (mm)
Cutter DiameterRampingRampingHelical cuttingHelical cuttingHelical cuttingHelical cutting
Dcα°ap maxα°ap maxMax hole diameter flat bottomMin hole diameter
354.42.03.72.06850
501.52.01.32.09880
631.12.00.92.0124106
801.32.01.12.0158140
