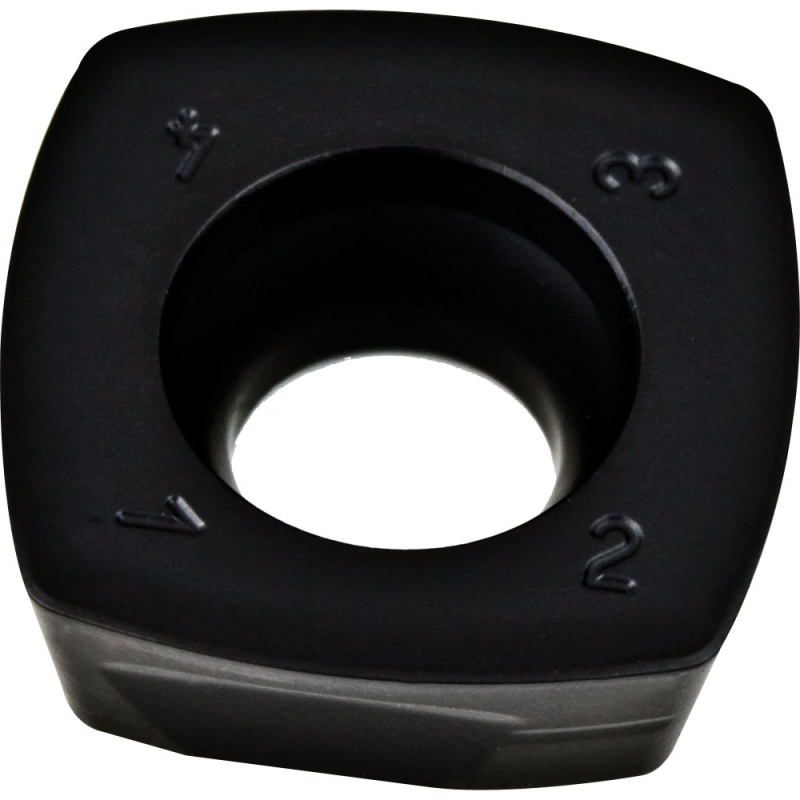

XOLT 130410SR-H NK230 Carbide Inserts for High Feed Milling of Steel

XOLT 130410SR-H NK230 Carbide Inserts for High Feed Milling of Steel
Zoom  Zoom
Our Price:  £6.60
List Price:  £9.90
Saving Of:  £3.30 (33%)
(Exc. 20% VAT)(£7.92 Inc. VAT)

Model:  XOLT130410SR-HNK230
Brand:  APT Carbide

Shipped Weight:  15g

Availability:

Only 50 left in stock - order soon

Only 50 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


XOLT 130410SR-H NK230 Carbide Inserts for High Feed Milling of Steel CVD Coated Grade NK230 P30 with High Quality CVD Coating.

Main application all types of Steel.

Geometry H for Steel.

These inserts provide very high table feed at low cutting depth.

Dimensions for XOLT 130410R-H NK230 (mm)
Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
13 4.76 5.5 1.0
Speeds and Feeds, General Cutting parameters.
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed fz(mm) Application Choice
Non alloyed steel 0-0.45℅ C 150-250 60-220 0.1-2.0 0.15-3.0 Good
Low alloyed steel 250-300 60-220 0.1-2.0 0.15-3.0 Good
High alloyed steel 200 60-180 0.1-2.0 0.15-3.0 Good
Corrosion resistant steel 200 60-190 0.1-2.0 0.15-3.0 Good



Ramping and Helical Interpolation Parameters (mm)
Cutter Diameter Ramping Ramping Helical cutting Helical cutting Helical cutting Helical cutting
Dc α° ap max α° ap max Max hole diameter flat bottom Min hole diameter
35 4.4 2.0 3.7 2.0 68 50
50 1.5 2.0 1.3 2.0 98 80
63 1.1 2.0 0.9 2.0 124 106
80 1.3 2.0 1.1 2.0 158 140
