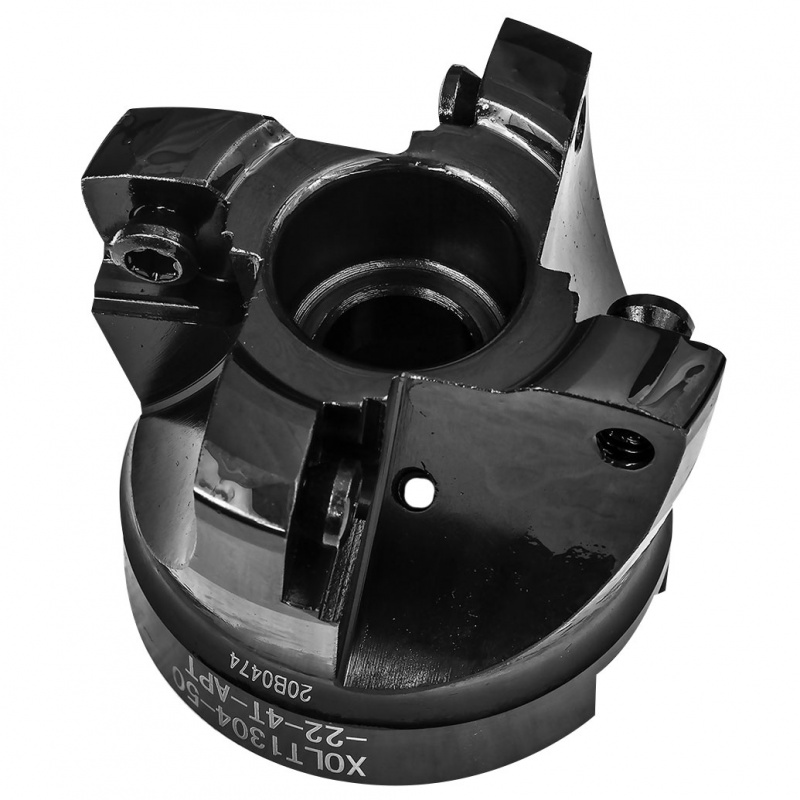

XOLT1304-50-22-4T High Feed Face Milling Cutter for XOLT 130410 Inserts 50mm diameter 4 Teeth

Our Price: £42.00(Exc. 20% VAT)(£50.40 Inc. VAT)

Model: XOLT1304-50-22-4T
Brand: APT Tools

Shipped Weight: 310 g

Availability:

Only 6 left in stock - order soon

APT Tools

Tools for Indexable Inserts

XOLT1304-50-22-4T High Feed Face Milling Cutter for XOLT 130410 Inserts 50mm diameter 4 Teeth.

22mm Bore, 40mm High.

These inserts provide very high table feed at low cutting depth.

Suitable for high feed milling, slotting, ramping and helical interpolation.

Dimensions for XOLT1304-50-22-4T (mm)

Diameter	Bore	Height	Teeth	Inserts	Through Hole Coolant
50	22	40	4	XOLT 130410	Yes

Ramping and Helical Interpolation Parameters (mm)

Cutter Diameter	Ramping	Ramping	Helical cutting	Helical cutting	Helical cutting	Helical cutting
Dc	α°	ap max	α°	ap max	Max hole diameter flat bottom	Min hole diameter
50	1.5	2.0	1.3	2.0	98	80
