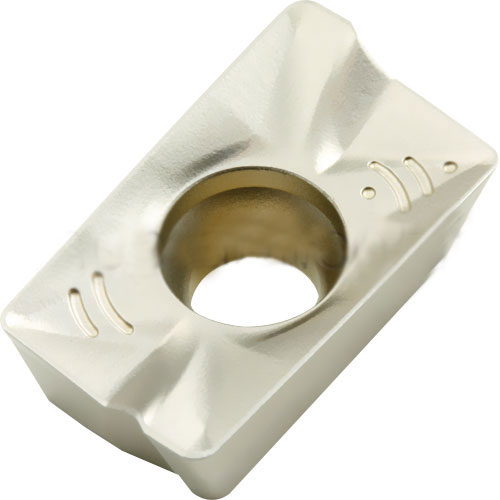

APKT 1604 PDR-S NK535 Carbide Inserts for Milling Hi-Temp Alloys Inconel Waspaloy Stellite Nimonic

APKT 1604 PDR-S NK535 Carbide Inserts for Milling Hi-Temp Alloys Inconel Waspaloy Stellite Nimonic
Zoom  Zoom
Our Price:  £8.51
List Price:  £12.76
Saving Of:  £4.25 (33%)
(Exc. 20% VAT)(£10.21 Inc. VAT)

Model:  APKT1604PDRSNK535
Brand:  APT Carbide

Shipped Weight:  10 g

Availability:

Only 80 left in stock - order soon

Only 80 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Milling CVD Coated Grade NK535 (S25–M35 + New CVD Coating) Main application Hi–Temp Alloys, Inconel, Waspaloy, Nimonic, Stellite ect extended application – Stainless

Geometry S for Alloy Steel, Stainless & Hi–Temp Alloy

Dimensions for APKT 1604 PDR-S NK535 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
16.39 9.52 5.3 4.4 0.8 11°
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Stainless - Ferritic 200 60-180 1.0-5.0 0.08-0.15 Good
Stainless - Austenitic 180 60-180 1.0-5.0 0.08-0.15 Good
Stainless - Martensitic 330 60-180 1.0-5.0 0.08-0.15 Good
Iron Based Hi-temp Alloys 200-280 20-50 1.0-3.0 0.08-0.15 Good
Nickel or Cobalt Based 30-58 HRC - 20-50 1.0-3.0 0.08-0.15 Good
Nickel or Cobalt Based 250 HB 250 20-50 1.0-3.0 0.08-0.15 Good
Pure Titanium - 20-50 1.0-3.0 0.08-0.15 Good
Titanium  Alpha + Beta Alloys - 20-50 1.0-3.0 0.08-0.15 Good
