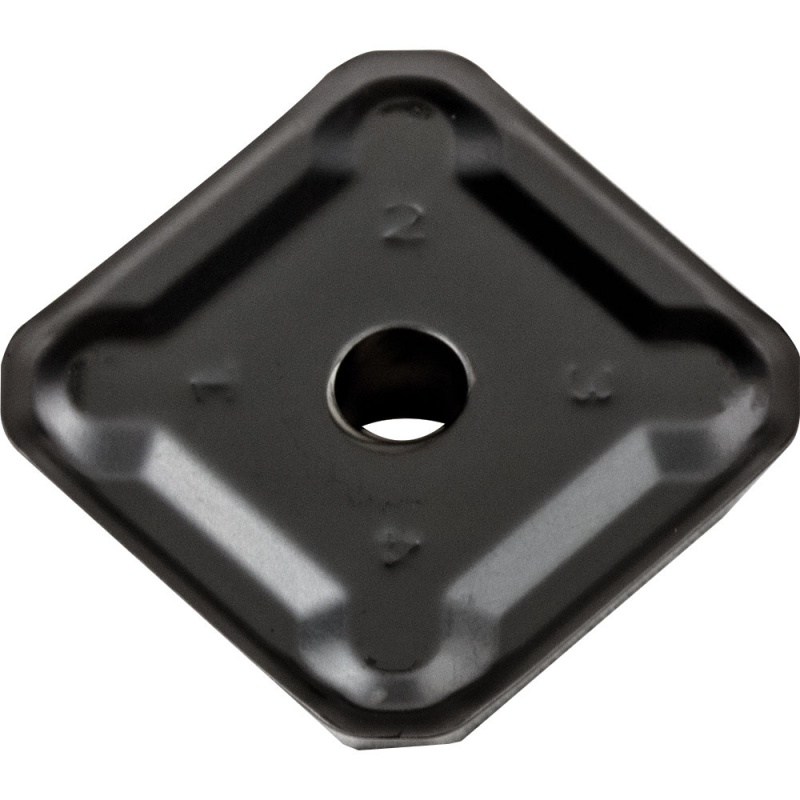

SEKR 1203 AFTN UM25 Carbide Inserts for Milling PVD Coated for General Use APT

SEKR 1203 AFTN UM25 Carbide Inserts for Milling PVD Coated for General Use APT
Zoom  Zoom
Our Price:  £2.00
List Price:  £3.00
Saving Of:  £1.00 (33%)
(Exc. 20% VAT)(£2.40 Inc. VAT)

Model:  SEKR1203AFTNUM25
Brand:  Uni-tip Carbide

Shipped Weight:  8 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


SEKR 1203 AFTN UM25 Carbide Inserts for Milling TiAlN PVD Coated. Main application Steel, extended application Stainless Steel and Cast Iron.

Insert has chip geometry for lower cutting forces.

Dimensions for SEKR 1203 AFTN UM25 (mm)
Length Inscribed Circle or Width Thickness Facet Side Clearance
12.7 12.7 3.18 45°x1.8 20°
General Cutting parameters
Material Material Group Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Steel P30-P40 70-180 1.0-6.0 0.15-0.25 Good
Stainless M30-M40 50-130 1.0-3.0 0.15-0.20 OK
Cast iron K30-K40 70-180 1.0-6.0 0.15-0.25 OK
