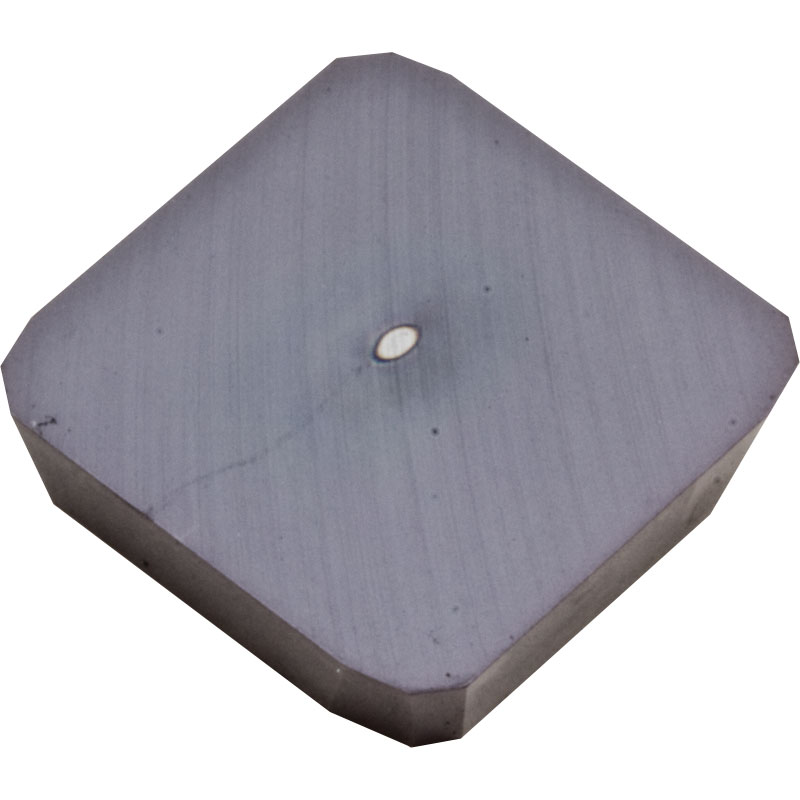

SPKN 1203 EDSR UM25 Carbide Inserts for Milling PVD Coated for General Use

SPKN 1203 EDSR UM25 Carbide Inserts for Milling PVD Coated for General Use
Zoom  Zoom
Our Price:  £3.00
List Price:  £4.50
Saving Of:  £1.50 (33%)
(Exc. 20% VAT)(£3.60 Inc. VAT)

Model:  SPKN1203EDSRUM25
Brand:  Uni-tip Carbide

Shipped Weight:  8 g

Availability:

Only 60 left in stock - order soon

Only 60 left in stock - order soon

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


SPKN 1203 EDSR Carbide Inserts for Milling PVD Coated in Grade UM25 (P25 M25 K30 S15 + NaCo3 PVD Coating) Main application, Steel & Stainless Steel, extended application Cast Iron and High temperature Super Alloys (HRSA)

Dimensions for SPKN 1203 EDSR UM25 (mm)
Length Inscribed Circle or Width Thickness Facet Corner Radius Side Clearance
12.7 12.7 3.18 15°x75° - 11°
General Cutting parameters
Material Material Group Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Steel P25-P35 80-200 1.0-7.0 0.1-0.3 Good
Stainless M20-M30 80-160 1.0-3.0 0.1-0.2 Good
Hi-temp Alloys S10-S20 20-60 1.0-2.0 0.1-0.12 OK
Cast iron K20-K30 80-200 1.0-7.0 0.1-0.3 OK
