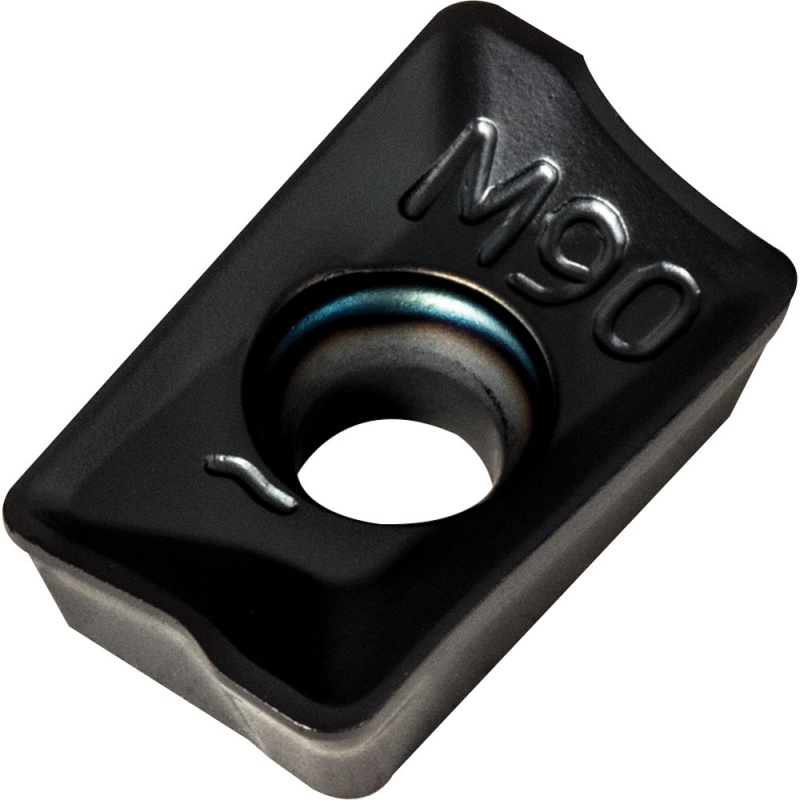

APKT 1003 PDR-HM90 UM25 Carbide Milling Inserts PVD Coated for Steel & Stainless

APKT 1003 PDR-HM90 UM25 Carbide Milling Inserts PVD Coated for Steel & Stainless
Zoom  Zoom
Our Price:  £1.60
List Price:  £2.40
Saving Of:  £0.80 (33%)
(Exc. 20% VAT)(£1.92 Inc. VAT)

Model:  APKT1003PDR-HM90UM25
Brand:  Uni-tip Carbide

Shipped Weight:  5 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


APKT 1003 PDR-HM90 UM25 Carbide Inserts for Milling PVD Coated Grade UM25. M25, P35, K35 with Multi Layer  PVD Coating for all types of Steel, Stainless and conditionally Hi-temp Alloys and Cast Iron.

Dimensions for APKT 1003 PDR-HM90 UM25 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
11.0 6.65 3.6 2.8 0.4 11°
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Non alloyed steel 0-0.45% C 150-250 90-260 (170) 1-6 0.06-0.15 Good
Low alloyed steel 250-300 70-220 (160) 1-6 0.06-0.15 Good
High alloyed steel 200 70-180 (130) 1-4 0.06-0.12 Good
Corrosion resistant steel 200 70-190 (140) 1-4 0.06-0.12 Good
Stainless - Ferritic 200 60-250 (160) 1-5 0.06-0.13 Good
Stainless - Austenitic 180 60-250 (160) 1-5 0.06-0.13 Good
Stainless -  Duplex 230-260 60-130 (100) 1-4 0.06-0.13 Good
Stainless - Martensitic 330 60-250 (160) 1-5 0.06-0.11 Good
Grey cast iron 180-260 60-130 (100) 1-6 0.06-0.15 OK
Spheroidal cast iron 160-260 90-160 (120) 1-6 0.06-0.15 OK
Malleable / Tempered iron 130-230 60-100 (70) 1-5 0.06-0.11 OK
Iron Based Hi-temp Alloys 200-280 HB 200-280 30-50 (40) 1-3 0.06-0.11 OK
Nickel or Cobalt Based 250 HB 250 15-30 (20) 1-3 0.06-0.11 OK
Nickel or Cobalt Based 30-58 HRC 350 15-25 (20) 1-2 0.06-0.11 OK
Hardened Steel 40-50HRC 45-60 (50) 1-2 0.06-0.11 OK
