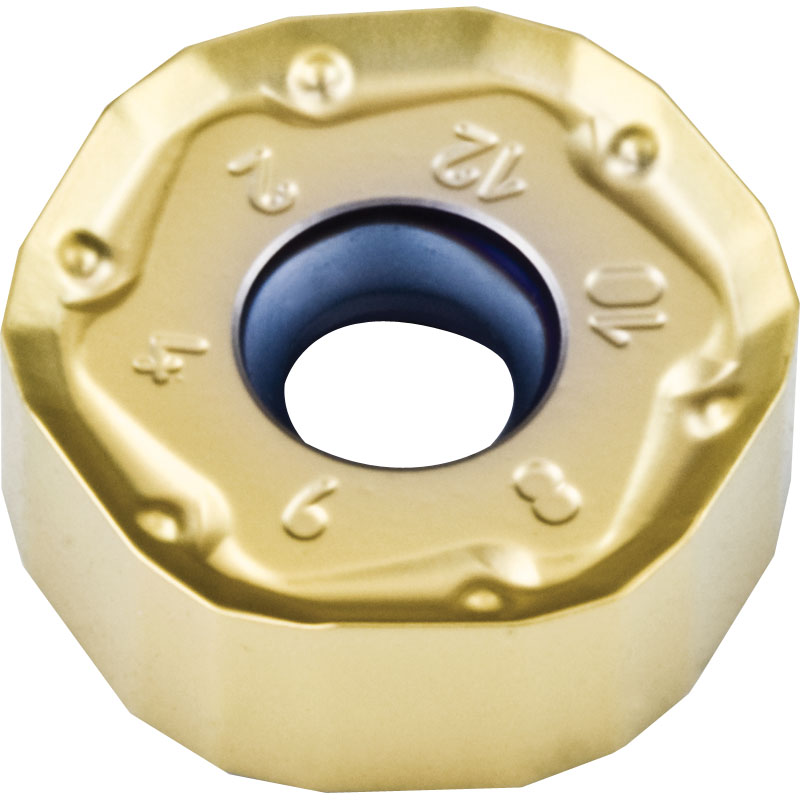

HNKU 0806AZR-S NK135 Carbide Inserts for Milling PVD Coated for General Use

HNKU 0806AZR-S NK135 Carbide Inserts for Milling PVD Coated for General Use
Zoom  Zoom
Our Price:  £12.98
List Price:  £19.47
Saving Of:  £6.49 (33%)
(Exc. 20% VAT)(£15.58 Inc. VAT)

Model:  HNKU0806AZR-SNK135
Brand:  APT Carbide

Shipped Weight:  19g

Availability:

Only 90 left in stock - order soon

Only 90 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Milling PVD Grade NK135 (P35–M35–S15 + PVD TiN (Ti–Al–Si)N Coating) Main application – Carbon & Alloy Steel, extended application – Stainless Steel & Hi–Temp Alloy.

Geometry S for general machining.

HNKU 0806 inserts can be used for 45° face milling and 18° high feed milling.

Economical 12 edge inserts offering savings compared to traditional square shaped inserts.

Dimensions for HNKU 0806AZR-S NK135 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
4.1 14.7 5.3 4.4 0.4-0.6
General Cutting parameters for 45° milling
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Non alloyed steel 0-0.45℅ C 150-250 70-220 1.0-4.0 0.1-0.40
Low alloyed steel 250-300 70-200 1.0-4.0 0.1-0.40
High alloyed steel 200 70-170 1.0-3.5 0.1-0.35
Corrosion resistant steel 200 70-190 1.0-3.5 0.1-0.35
Stainless - Ferritic 200 70-220 1.0-3.0 0.1-0.35
Stainless - Austenitic 180 70-200 1.0-3.0 0.1-0.32
Stainless - Martensitic 330 70-140 1.0-2.8 0.1-0.30
General Cutting parameters for 18° high feed milling
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Non alloyed steel 0-0.45℅ C 150-250 70-220 1.0-1.8 0.50-1.8 (0.85)
Low alloyed steel 250-300 70-200 1.0-1.8 0.50-1.8 (0.85)
High alloyed steel 200 70-170 1.0-1.8 0.50-1.8 (0.85)
Corrosion resistant steel 200 70-190 1.0-1.8 0.50-1.8 (0.85)
Stainless - Ferritic 200 70-220 1.0-1.8 0.50-1.8 (0.85)
Stainless - Austenitic 180 70-200 1.0-1.8 0.50-1.8 (0.85)
Stainless - Martensitic 330 70-140 1.0-1.8 0.50-1.8 (0.85)
