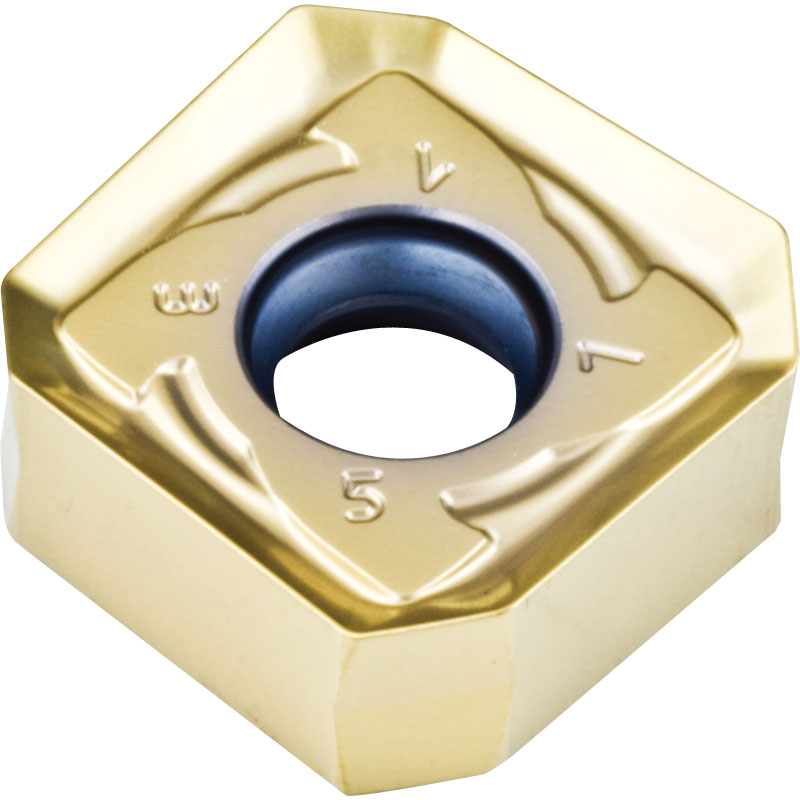

SOKU 1505AZR-S NK135 Carbide Inserts for Milling PVD Coated for General Use

SOKU 1505AZR-S NK135 Carbide Inserts for Milling PVD Coated for General Use
Zoom  Zoom
Our Price:  £10.84
List Price:  £16.25
Saving Of:  £5.41 (33%)
(Exc. 20% VAT)(£13.01 Inc. VAT)

Model:  SOKU1505AZR-SNK135
Brand:  APT Carbide

Shipped Weight:  23g

Availability:

Only 60 left in stock - order soon

Only 60 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


SOKU 1505AZR-S NK135 Carbide Inserts for Milling PVD Grade NK135 (P35–M35–S15 + PVD TiN (Ti–Al–Si)N Coating) Main application – Carbon & Alloy Steel, extended application – Stainless Steel & Hi–Temp Alloy

Geometry S for general machining

Dimensions for SOKU 1505AZR-S NK135 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Side Clearance
6.5 15.875 6.03 5.7 0° (3° at facet)
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Non alloyed steel 0-0.45℅ C 150-250 70-220 1.0-6.0 0.1-0.45
Low alloyed steel 250-300 70-220 1.0-6.0 0.1-0.45
High alloyed steel 200 70-170 1.0-5.5 0.1-0.40
Corrosion resistant steel 200 70-190 1.0-5.5 0.1-0.40
Stainless - Ferritic 200 70-220 1.0-4.0 0.1-0.25
Stainless - Austenitic 180 70-200 1.0-4.0 0.1-0.25
Stainless - Martensitic 330 70-140 1.0-3.5 0.1-0.25
